Tower (Elevator type) Parking

A fully Automated Parking system for small surface areas, parking up to 70 vehicles/system.

Heights of up to 70 m above ground, underground or in a mixed hybrid solution. The tower parking system can be designed for various options of cars per level – 1, 2, 3, 4, 5, 6 cars

Sideways transfer mechanism; customized models of length wise transfer mechanism also possible

Literally in a space of Three cars, we park 70 cars vertically

Advantages at a glance :

  • Excellent solution where ground parking space is scarce, expensive and congested.
  • Modular design adaptable to most scenarios
  • Very efficient retrieval time is accomplished in less than two to three minutes.
  • A rotating platform parks and retrieves cars facing in the driving direction

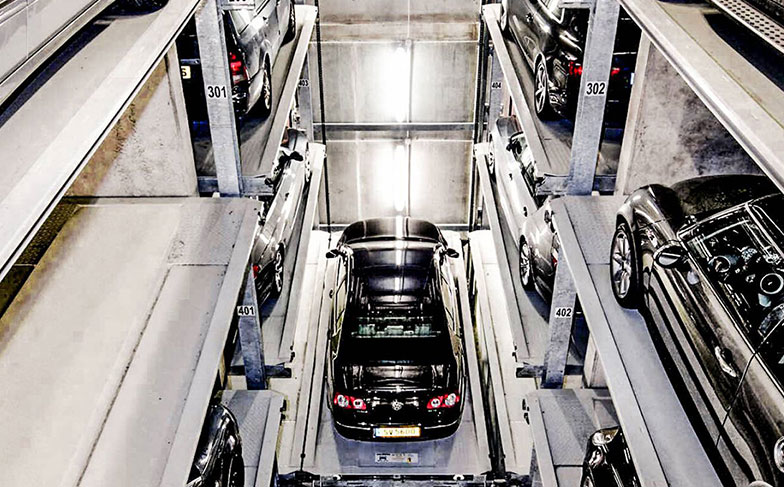

  • Combination of lift, Storage and retrieval unit (SRU), and Turntable for optimum performance
  • Can be customized for specific car types
  • Various Permutations/Combinations possible by placing systems adjacent or behind each other
  • Intelligent allocation of vehicles within the system for shorter access times
  • Several parking spaces per system possible
  • Simple operating procedures for users, even at peak times and when traffic is heavy
  • Excellent protection against pilferage and damage small footprint

Highlights:

  • The system can be for 2 Ton or 2.5 Ton car handling capacity. Higher loads per parking space possible on request
  • Auto door sensor activated Entry and Exits can be at different levels
  • An optional turntable mechanism can rotate the car 180 Deg

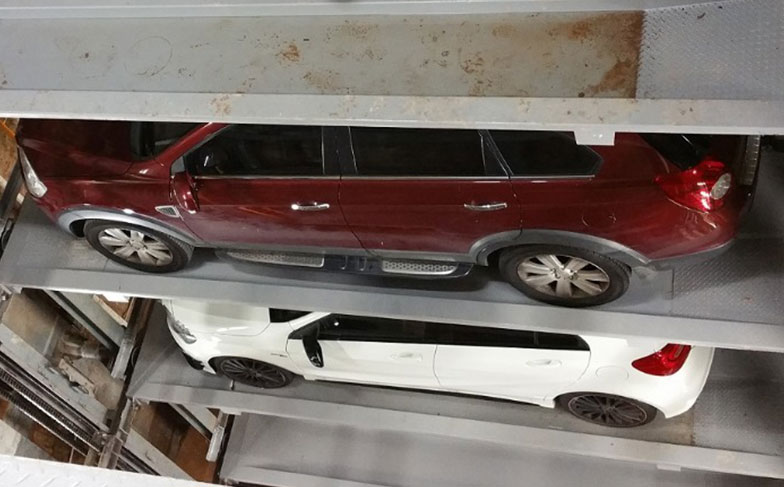

  • The system is designed to handle SUV, MUV, Hatchback, Sedan cars
  • Fully automated PLC intelligent control system and perfect security, there's light guide when cars in/out the garage, car over length monitor , speed limit protection and multiple mechanical interlock; all guarantee the safety of car and personnel.
  • No need for complicated ventilation system or expensive lighting

System Features:

The Tower system is a fully-automated vertical solution used to multiply parking capacity by utilizing vertical space where ground space is limited.

The systems consist of Car lift, SRU, Turntable, Integrated computer system.

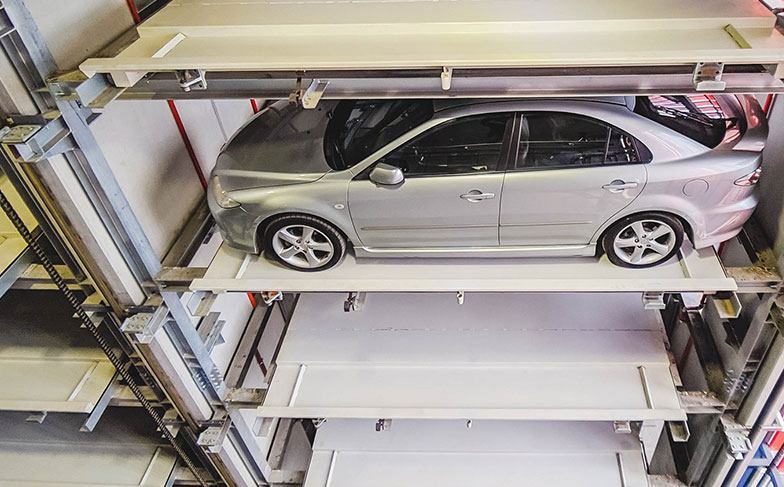

The lift elevates or descends the pallets in the vertical plane, and the transfer mechanism moves it horizontally left or right into parking slots selected by intelligent Automation

Multiple layers of network sensors and limit switches prevents any contact between vehicle bodies and the walls of the structure. Cars have maximum protection.
The overall operation can be viewed with one screen and has an excellent human machine interface for ease of operation.

This system is suitable for medium or large-scale buildings. It can also be used as a stand-alone tower for pay and park business in private and municipalities. Since it is controlled by an integrated computer system, the overall operation can be viewed with one screen and its operation is very user-friendly. We incorporate German/Italian motors, Mitusubishi or equivalent drives and PLC’s.

Models:

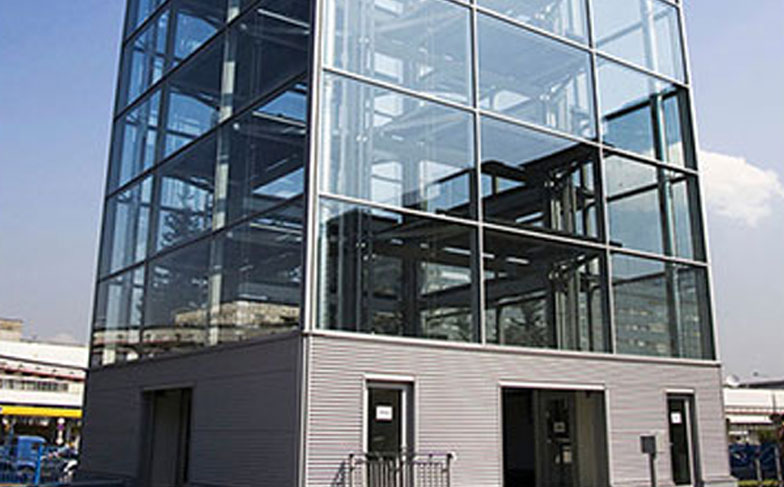

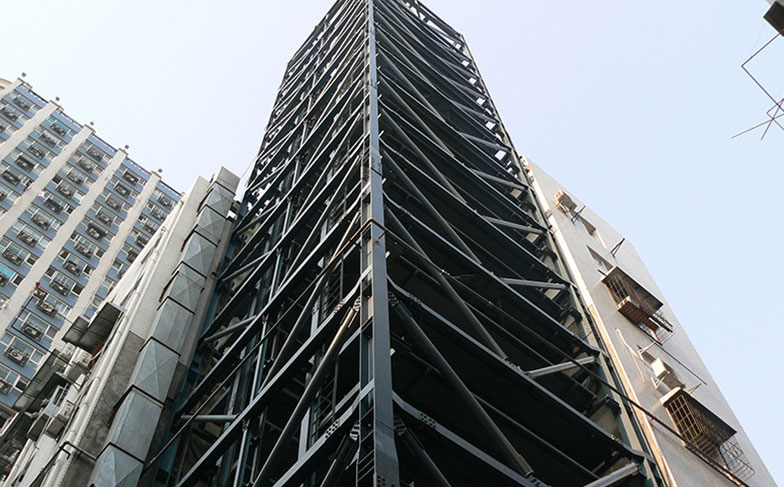

ST – Open Standalone Steel Structure Tower

RCT – Closed RCC Tower with Vertical Steel Columns within the RCC shaft

RBT – Closed RCC Tower with brackets fixed onto the RCC shaft
