Horizontal Circulation Parking

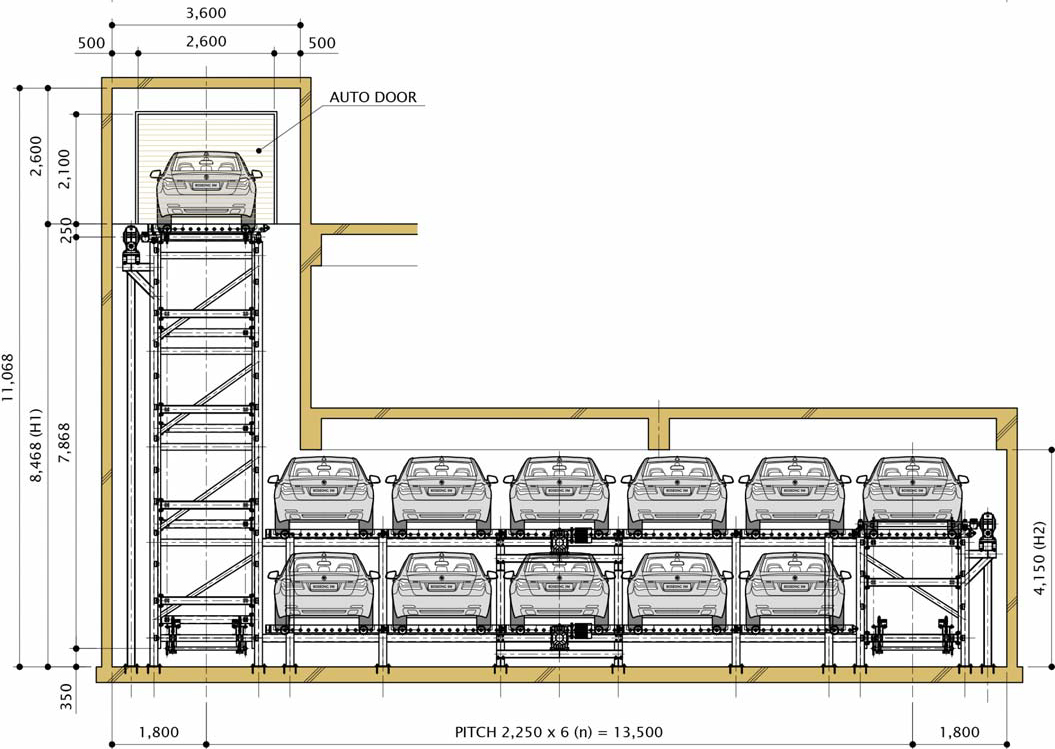

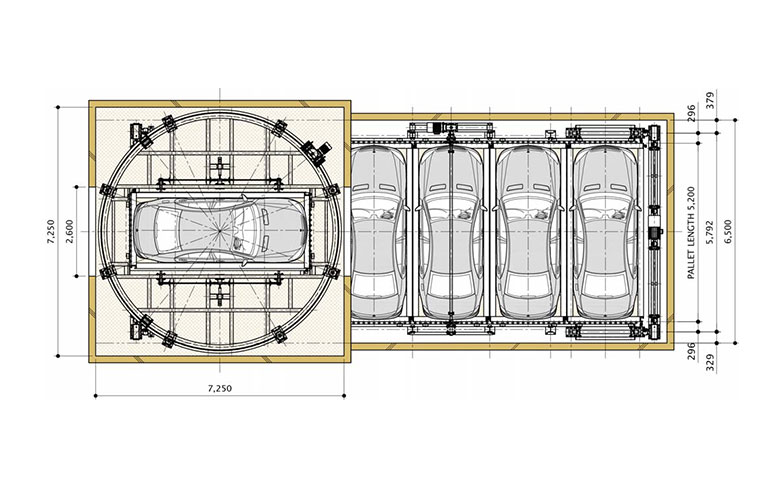

Multi-layer Circulation type has lifts moving up and down at both ends and pallets moving horizontally both sides in a multi-layered parking lot.

Operation is ensured by two independent elevator systems at both ends of equipment and horizontally moving platforms on each floor. Circular motion is performed in the horizontal plane to move platforms to the parking exit and entry points.

Typically underground and can easily accommodate 6 to 40 cars. These systems can be pre-planned and be built for large-scale residential or commercial communities, as they can be designed simultaneously along with the actual building layouts and occupancy volume details.

Advantages at a glance :

Most ideal solution for plots which are rectangular and have very limited access and probably only where one access is possible
8 times higher space efficiency than conventional parking
Each parking space is independently accessed
User-friendly touch screen HMI control panel
Fully automatic operation with Easy PLC type Controls
Efficient utilization of basement or above ground space
No need for complicated ventilation system or expensive lighting

Highlights:

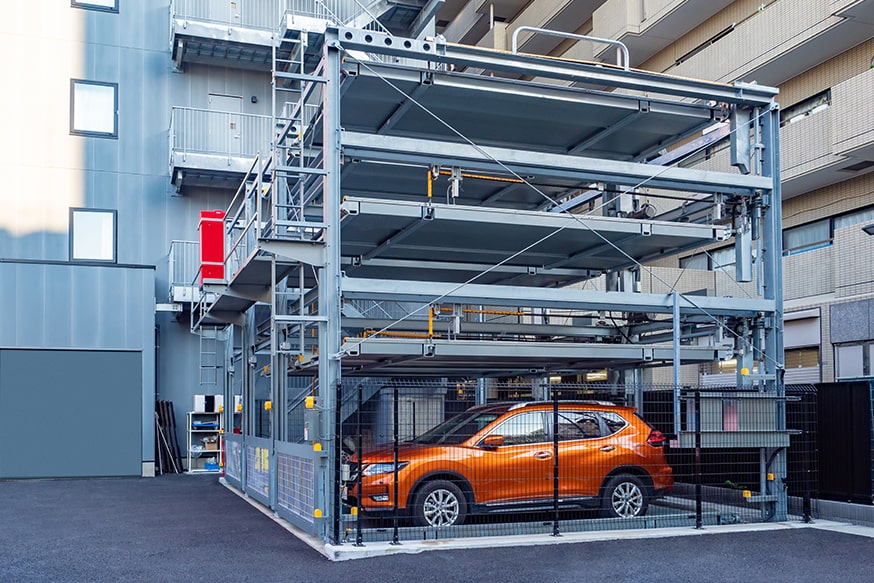

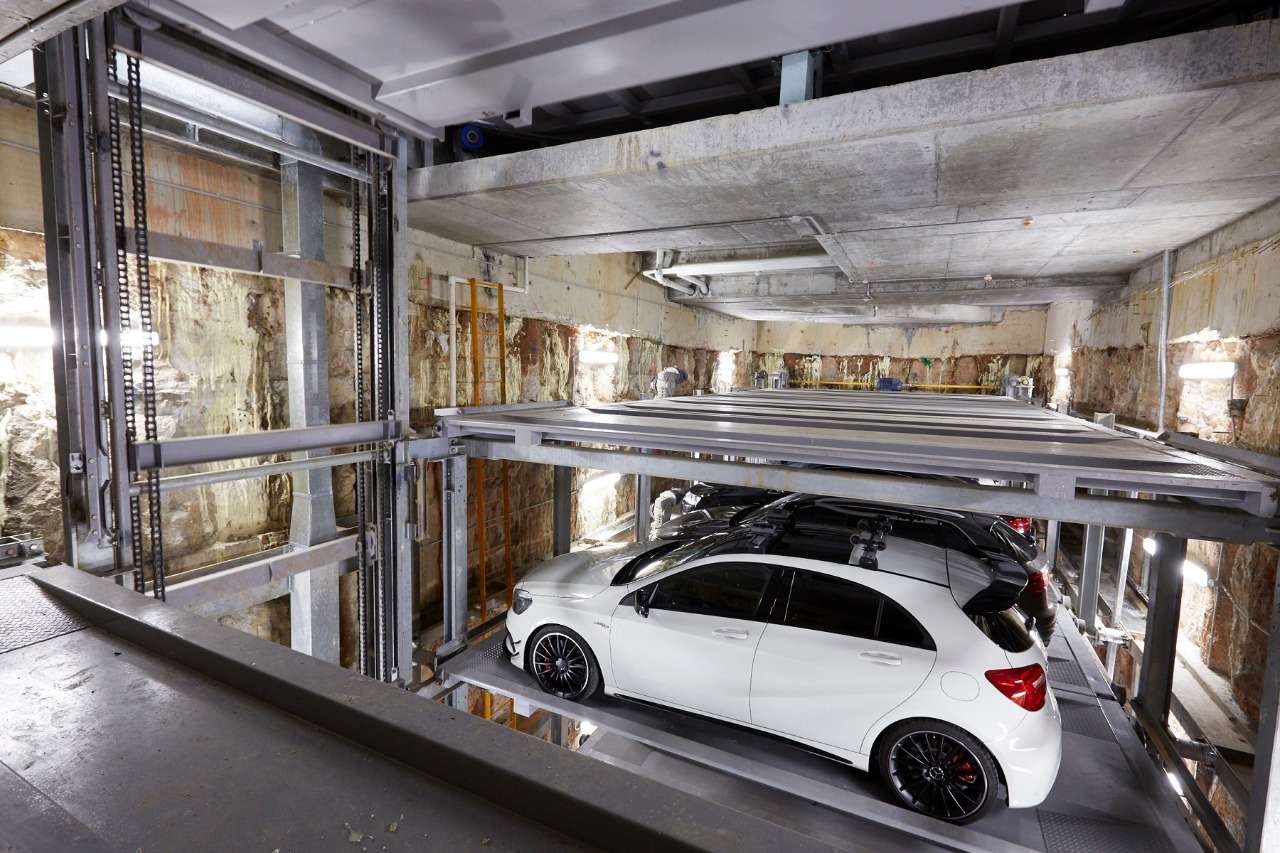

Generally used in underground spaces
This system is suitable for a maximum of 20 -44 cars
Time required to park/retrieve is approx. 4 to 5 minutes
Carrying capacity per car is 2000kg
The maximum allowable parking height for all the floors has to be same
The pallets are interlocked with each other and move by single motor at each level
Controlled by intelligent PLC based controller
Safety features – Emergency stop, guidance light at entry, location detection sensors, prevention of over run of lift and pallets, Car size position sensors
Area above the parking facility can be greened, thus creating a visually pleasing environment

System Features:

This combines the working principle of vertical movement of a lift and the horizontal movement of a conveyor, which enables cars on pallets to move in and out of the system.

Driver drives the vehicle onto the car lift, leaves the car, closes the doors and punches the HMI screen. Next, the car is parked automatically. To receive the car, similar actions are performed. Automation recognizes the pin-code or smart-card and itself moves necessary vehicle towards exit.

Best suited for installation in narrow and long places where free access to the parking place is difficult. When such parking system is deployed in the underground of residential building courtyards, available land area is most efficiently used. The systems consist of Main Lift, Sub lift, Pallets, Chains indexed to stop at correct levels, Motors for sliding and Integrated computer system.

The lifting mechanism elevates or descends the platforms in the vertical plane, and the transfer motors moves it horizontally selected by intelligent Automation
