Our lifelong experience, innovation, cutting edge technology and precision Engineering gave birth to the EVA 300 series.
Evantlis Passenger Elevator systems is the complete answer for all your passenger mobility needs. For Architects, Builders and Developers the Evantlis Passenger Elevator range is very popular as a versatile design which can be incorporated easily into New and Existing buildings.
With our Eva 300, we’ve created an efficient, high quality solution that transforms the experience of moving through your building.
For High-rise buildings which is 16 floors +, Evantlis EVA 300 series with its latest innovative traction media technology provides a smooth and quiet ride, high energy-efficiency and space saving.
Available with machine room and machine room-less options
Eva 300 uniquely combines performance, flexibility and design, which makes it easy to fit to the requirements of commercial, mid and high-end residential buildings. Passengers highly appreciate the style, comfort and speed, allowing them to experience a world class product.
We evaluate architectural considerations, traffic analysis, product specifications and value engineering to help develop and deliver on your vision.
1500 kg Rated load
4 m/s Max speed
60 Max stops
180m Max travel
Compact Machine room to reduce Construction cost
| Load (Kg) | Car Width (mm) | Car Depth (mm) | Hoistway Width (mm) | Hoistway Depth (mm) | Door Entrance Width(mm) | Door Entrance Height(mm) |
|---|---|---|---|---|---|---|
| 1000 | 1600 | 1400 | 2200 | 2100 | 900 | 2100 |
| 1250 | 1700 | 1600 | 2300 | 2300 | 1000 | 2100 |
| 1350 | 1900 | 1800 | 2500 | 2500 | 1100 | 2100 |
| 1600 | 1900 | 1800 | 2500 | 2500 | 1100 | 2100 |
The lift components are intelligently installed inside the hoist way, thus requirement of Machine room is eliminated. This design reduces construction cost and frees up space for architects
| Load (Kg) | Car Width (mm) | Car Depth (mm) | Hoistway Width (mm) | Hoistway Depth (mm) | Door Entrance Width(mm) | Door Entrance Height(mm) |
|---|---|---|---|---|---|---|
| 1000 | 1600 | 1400 | 2500 | 2000 | 900 | 2100 |
| 1250 | 1700 | 1600 | 2800 | 2100 | 1000 | 2100 |
| 1350 | 1900 | 1600 | 3000 | 2100 | 1100 | 2100 |
| 1600 | 1900 | 1800 | 2500 | 3000 | 1100 | 2100 |
Evantlis Passenger Elevator systems is the complete answer for all your passenger mobility needs.
For Architects, Builders and Developers the Evantlis Passenger Elevator range is very popular as a versatile design which can be incorporated easily into New and Existing buildings.
Industry leading design, cost effective construction, low energy consumption, excellent ride quality, guaranteed safety packaged with Evantlis customer support meets all your needs.
For mid-rise buildings up to 6 to 16 floors, Evantlis EVA 200 series is the most optimum passenger transportation solution.
Available with machine room and machine room-less options.
EVA 200 is highly cost-effective, eco-friendly and versatile lift solution that can be adapted to fit specific shaft dimensions and machine room requirements.
Its designed to deliver both premium quality construction and exceptional ride comfort. Low noise levels and minimal vibrations ensure a smooth and pleasant passenger experience.
1020 kg Rated load
1.75 m/s Max speed
20 Max stops
60m Max travel
Compact Machine room to reduce Construction cost
| No. of Person | Load (Kg) | Car Width (mm) | Car Depth (mm) | Hoistway Width (mm) | Hoistway Depth (mm) | Door Entrance Width(mm) | Door Entrance Height(mm) |
|---|---|---|---|---|---|---|---|
| 6 | 408 | 1000 | 1100 | 1550 | 1550 | 700 | 2000 |
| 8 | 544 | 1300 | 1100 | 1700 | 1550 | 800 | 2000 |
| 10 | 680 | 1350 | 1300 | 1750 | 1750 | 800 | 2000 |
| 13 | 884 | 1600 | 1350 | 2000 | 1900 | 900 | 2000 |
| 15 | 1020 | 1600 | 1500 | 2000 | 1050 | 900 | 2000 |
The lift components are intelligently installed inside the hoist way, thus requirement of Machine room is eliminated. This design reduces construction cost and frees up space for architects
| No. of Person | Load (Kg) | Car Width (mm) | Car Depth (mm) | Hoistway Width (mm) | Hoistway Depth (mm) | Door Entrance Width(mm) | Door Entrance Height(mm) |
|---|---|---|---|---|---|---|---|
| 6 | 408 | 1100 | 1000 | 1775 | 1475 | 700 | 2000 |
| 8 | 544 | 1300 | 1100 | 1975 | 1525 | 800 | 2000 |
| 10 | 680 | 1350 | 1300 | 2025 | 1625 | 800 | 2000 |
| 13 | 884 | 1600 | 1350 | 2275 | 1650 | 900 | 2000 |
| 15 | 1020 | 1600 | 1500 | 2275 | 1760 | 900 | 2000 |
Evantlis Passenger Elevator systems is the complete answer for all your passenger mobility needs.
For Architects, Builders and Developers the Evantlis Passenger Elevator range is very popular as a versatile design which can be incorporated easily into New and Existing buildings.
Industry leading design, cost effective construction, low energy consumption, excellent ride quality, guaranteed safety packaged with Evantlis customer support meets all your needs.
For low-rise buildings up to 6 floors, Evantlis EVA 100 series is the most optimum passenger transportation solution.
With machine room and machine room-less options, safety, space optimization, ride quality is always the fundamental inputs in our designs.
We have the most economical solution for residential buildings designed to offer both reduced total cost of ownership and value for money.
800 kg Rated load
1 m/s Max speed
6 Max stops
24m Max travel
Compact Machine room to reduce Construction cost
| No. of Person | Load (Kg) | Car Width (mm) | Car Depth (mm) | Hoistway Width (mm) | Hoistway Depth (mm) | Door Entrance Width(mm) | Door Entrance Height(mm) |
|---|---|---|---|---|---|---|---|
| 6 | 408 | 1000 | 1100 | 1550 | 1550 | 700 | 2000 |
| 8 | 544 | 1300 | 1100 | 1700 | 1550 | 800 | 2000 |
| 10 | 680 | 1350 | 1300 | 1750 | 1750 | 800 | 2000 |
The lift components are intelligently installed inside the hoist way, thus requirement of Machine room is eliminated. This design reduces construction cost and frees up space for architects
| No. of Person | Load (Kg) | Car Width (mm) | Car Depth (mm) | Hoistway Width (mm) | Hoistway Depth (mm) | Door Entrance Width(mm) | Door Entrance Height(mm) |
|---|---|---|---|---|---|---|---|
| 6 | 408 | 1100 | 1000 | 1775 | 1475 | 700 | 2000 |
| 8 | 544 | 1300 | 1100 | 1975 | 1525 | 800 | 2000 |
| 10 | 680 | 1350 | 1300 | 2025 | 1625 | 800 | 2000 |
Fitted with certified safety components of the most stringent standards, quality, ensuring reliable lift operation, even for extremely demanding needs.
We consider architectural solutions, traffic analysis, product specifications and value engineering to help craft and deliver on your vision.
The Eva 300 upgraded designs help you lower your building’s carbon footprint by using energy more efficiently.
Contact-free sensors assure accurate levelling with the floor for safe, seamless movement of passengers and goods in and out of the elevator. Variable frequency drive systems deliver accurate measured power to traction machines and door motors.
Feel safe and secure with the guarantee of complete passenger safety. Equipped with light curtains to provide additional safety and protection to the passenger when the car doors are closing. The Battery powered Automatic Rescue Device delivers passengers safely to the nearest floor during a power failure
Gearless Permanent magnet synchronous machines deliver exceptional ride quality whilst reducing energy usage by up to 60%. LED illumination reduces energy consumption and lasts up to 10 times than fluorescent lights

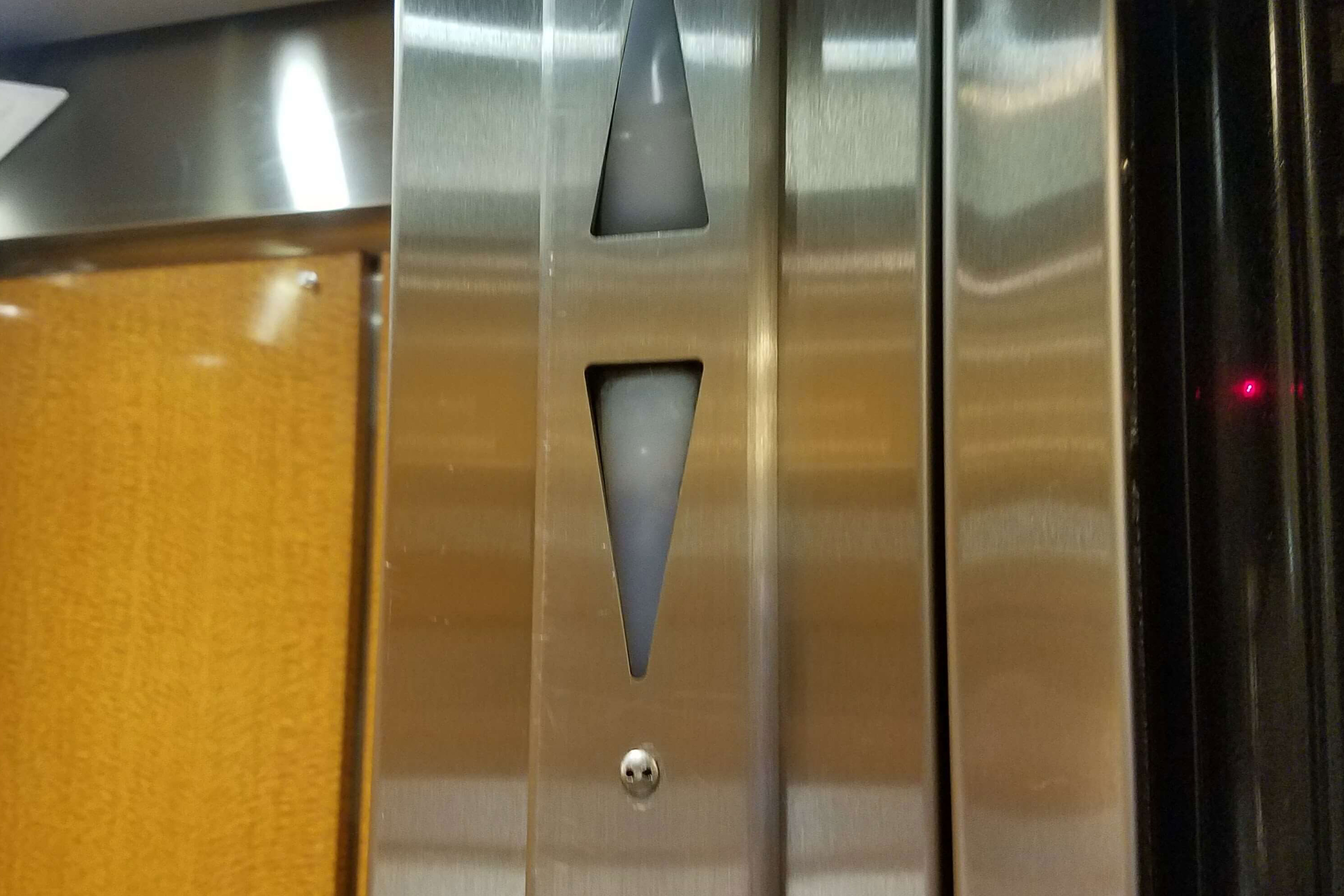

Eva 300 is equipped with light curtains to provide additional safety and protection to the passenger when the car doors are closing.
High performance door mechanisms and superior acceleration/deceleration benefits users to move quickly within the building
