Puzzle (Lift & Slide) Parking

Puzzle Parking is a semi-automatic system popularly called Lift & Slide designed to be installed both indoors and outdoors

Cars are parked in vertical and horizontal arrays, and each parking space is independently accessible Typically, it is designed to go a maximum of 7 levels and up to 10 grids.

Advantages at a glance :

Excellent solution where ground parking space is scarce, expensive and congested.
Self- parking possible without the need for any system operator
Each parking space is independently accessed
User-friendly touch screen HMI control panel
System can be designed for any number of car spaces, and is infinitely scalable by adding in modules adjacent or in tandem
Modular design adaptable to most scenarios
Intelligent software ensures efficient retrieval times
Comfortable walking and driving thanks to bend trapezoidal platform design
No need for complicated ventilation system or expensive lighting

Highlights:

Comes in 2, 3, 4, 5, 6, and 7-level configurations; with or without pits and is ideal for new construction or retrofits
The parking bays are accessed horizontally
Average retrieval time – ranges from 30 to 120 seconds
Carrying capacity per car available with 2000kg and 2500kg
Car heights 1.7 – 2. 1 mtrs or according to client requirements
Variable arrangement of 2- 10 grids beside one another
Controlled by intelligent PLC based controller
Multi size options available corresponding to car heights, widths and lengths
Easy operation and parking comfort
Vehicles can be parked behind theft-proof safety gates as an optional feature
Suitable for both indoor, and if outdoor to be used with cladding enclosure
System can be customized with external cladding/siding, garage doors and roof, per project specifications. The system is designed to handle SUV, MUV, Hatchback, Sedan cars

System Features:

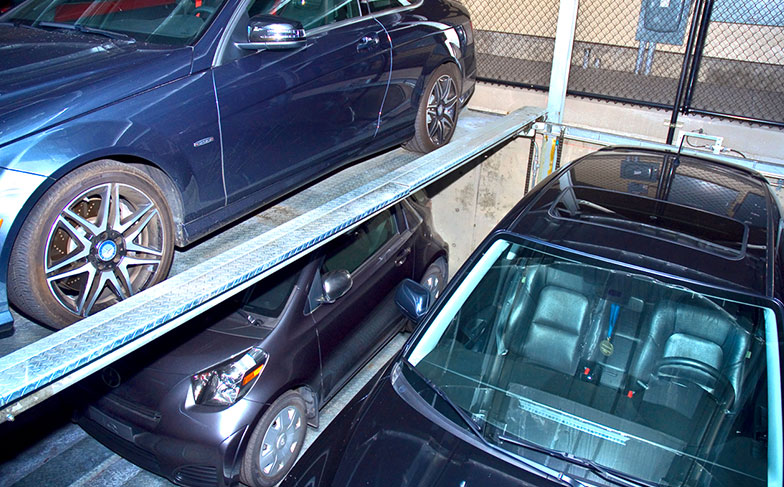

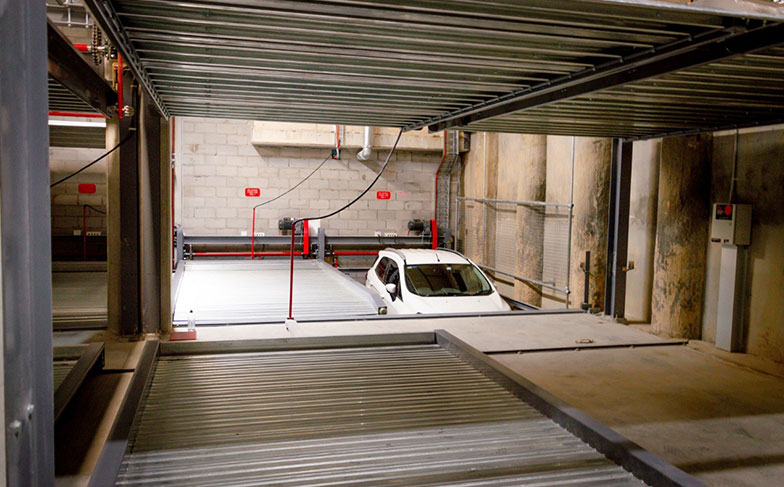

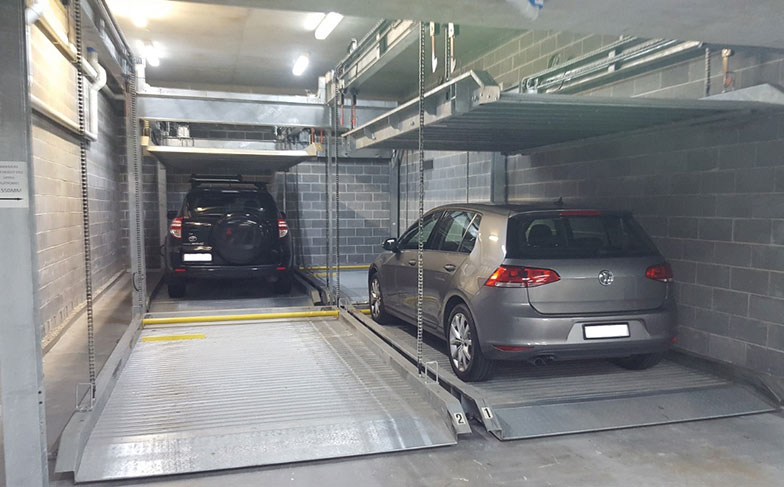

The system design enables the use of all parking entrances and exits on the ground level. The parking pallet moves left, right, upward, and downward and has always a minimum of one empty slot for movement. Car parkers can have multiple levels above, pit-style below, or a combination of both.

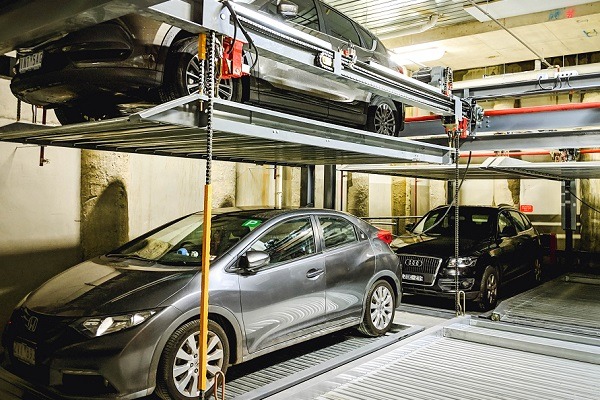

The cars are arranged in a matrix in horizontal levels and vertical grids. The systems consist of Lifting mechanism, Traversing mechanism, Integrated computer system.

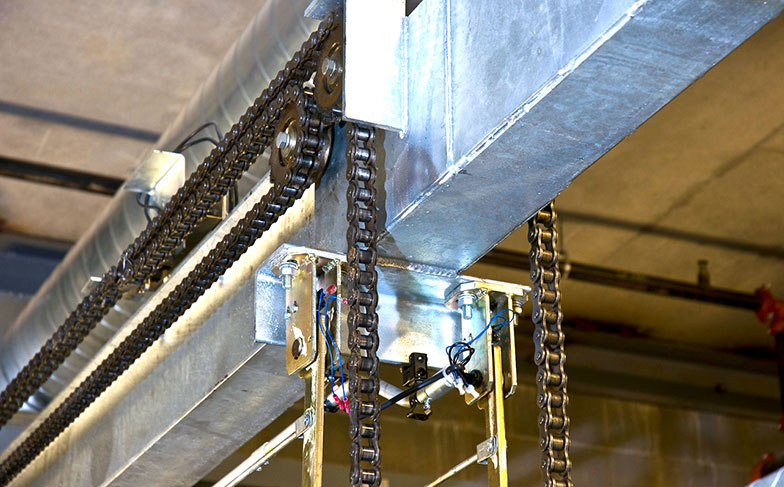

The lifting mechanism elevates or descends the platforms in the vertical plane, and the transfer mechanism moves it horizontally left or right into parking slots selected by intelligent Automation Electromechanical system

Models:

Our models are as easy to define as it is dealing with us.
Illustration –

AG5BG0W5

Above ground levels – 5

Below Ground levels – 0

No of Grids along the width – 5

AG2BG1W3

Above ground levels – 2

Below Ground levels – 1

No of Grids along the width – 3

Go ahead and make your own models. Let us know what you need
Limitations : 7 levels for a full above ground system, 5 levels above ground and 2 levels below ground, 10 grids along the width
